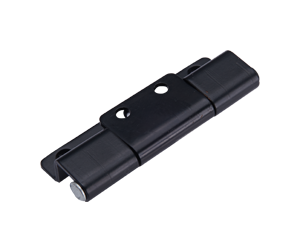

CL111-3
Material: carbon steel dynamic, static hinge, shaft
Surface treatment: blackening

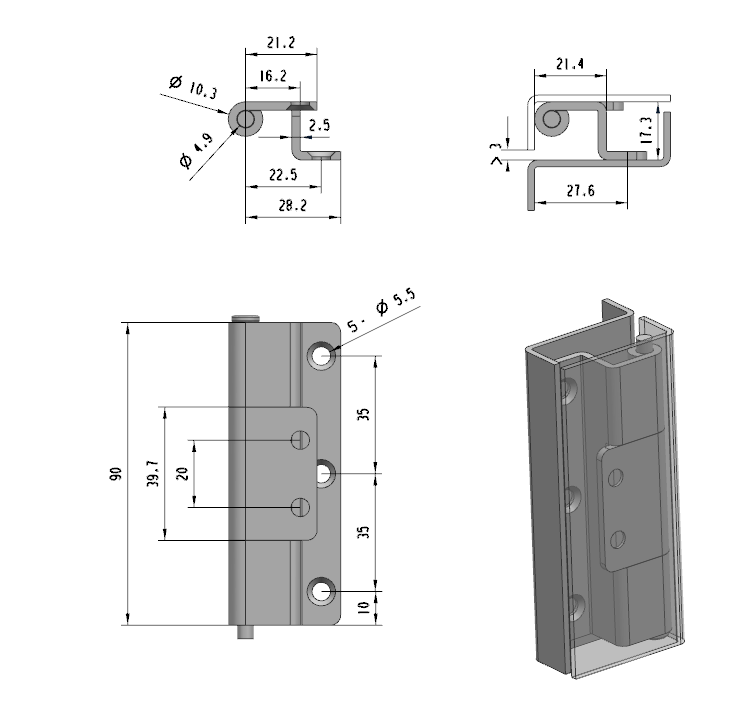

Structural description: When the gap between the door panel and the door frame is 3, the hinge can be opened 110 degrees
Performance parameters: maximum static load
Radial load: 775N
Axial load: 1000N
